Couple infertility may be due to male factors, female factors or a combination of male and female factors. Both the female and male are equal stakeholders in both diagnosis and treatment. Therefore, it is good clinical practice to obtain a reproductive history, perform a physical examination and basic diagnostic tests of reproductive function (Appendix I).²¹

Further, a workup of both partners is always required. Many couples have more than one fertility issue present. For the female partner, tests are indicated to evaluate ovarian reserve, ovulatory function, tubal structures as well as assessment of the uterine cavity.²² To interpret male infertility studies in isolation from female factors is not appropriate for these couples.

Maternal age is the strongest predictor of fertility outcome in couples undergoing therapy.^23-25 Natural conception rates decrease by almost 50% as women approach their 40’s as compared to when they are in their 20’s. In a large IVF study, over 80% of success was predicted by the maternal age. These findings highlight the importance of maternal age when assessing any studies using fertility as an outcome. As such, consideration of maternal age is required when interpreting male infertility studies.

A reproductive history assessment provides important information about lifestyle and sexual history that can contribute to reduced fertility or sterility. The SA is an important component in the initial clinical evaluation of the male and his reproductive health. A SA provides critical data on testicular sperm production as reflected by total sperm number, the patency and function of the male genital tract and secretions from its associated organs, emission and ejaculation. Defects in spermatogenesis, genital tract anatomy, patency and function, as well as emission and ejaculation will impact the patient’s semen parameters.

The SA should include measures of semen volume, pH if indicated, sperm concentration/sperm count, sperm motility, and sperm morphology. Abnormalities in any one or more of these parameters can compromise a man’s ability to naturally impregnate his female partner. SA results cannot precisely distinguish fertile from infertile men except in cases of azoospermia; however, some types of teratozoospermia (e.g., complete globozoospermia), necrozoospermia, or complete asthenozoospermia correctly informs a diagnosis of infertility. ²⁶

Clinicians should counsel infertility patients that the WHO ⁵ lower limits of semen parameters are based on fertile men whose partners became pregnant in 12 months or less. Semen parameter values falling above or below the lower limit do not by themselves predict either fertility or infertility. ²⁷ In the interpretation of the SA, the clinician should remember that semen parameters are highly variable biological measures and may vary substantially from test to test. Therefore, at least two SAs obtained a month apart are important to consider, especially if the first SA has abnormal parameters.

Standardized methods and essential quality control procedures for performing the SA have been codified in one or more editions of the WHO laboratory manual for the examination of human semen. ⁵ The WHO 5th Edition defined lower reference limits (LRL) based on SA data of recent fertile fathers (time to pregnancy <12 months) collected at multiple locations from around the world. ^5,28 The calculation of evidence-based LRL for each semen parameter as determined by the application of principles of clinical chemistry was provided in the 5th WHO edition. ^5,28

Evidence demonstrates that a diagnosis of male fertility or infertility cannot reliably be made based solely on a single semen parameter. ^5,26 For example, it is clear that there are men who have abnormal semen parameters, yet they have contributed to a prior successful pregnancy through natural conception. Of note, as the number of individual semen parameters that fall below the LRL increases, the odds of correctly diagnosing a risk for subfertility increases, although the finding is not predictive for the individual. ²⁶ Thus, it is recommended that semen parameters be considered collectively and not just individually. Accordingly, the data also show that while the relative risk (RR) of infertility on an individual patient level can be estimated, it is impossible to predict whether they are fertile or infertile based solely on SA parameters. ²⁶ Nevertheless, the consistent presence of abnormal semen parameters suggests the presence of a male factor in an infertile couple, encouraging physicians to consider further evaluation of the male and management to enhance male reproductive function.

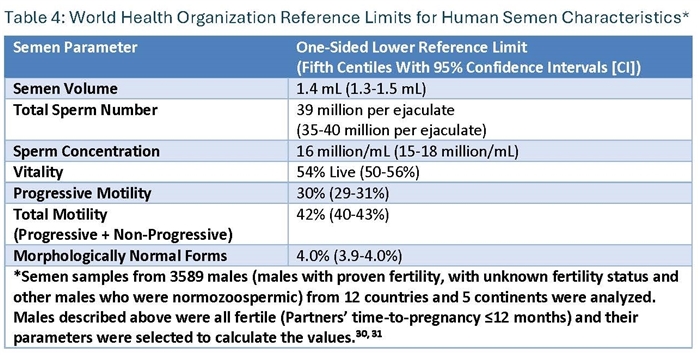

Table 2: World Health Organization Reference Limits for Human Semen Characteristics*

Ideally, a reproductive evaluation will lead to maximizing the reproductive health of an individual and future offspring.² Indeed, the evaluation and treatment of male infertility can improve fertility outcomes allowing some couples to conceive naturally and lower treatment costs. Furthermore, a male evaluation may inform some couples to avoid ART. For example, investigators suggested that varicocele treatment may be more cost effective than ART or can lower the intensity of treatment.^29-31 This may allow couples to conceive by less invasive technologies, such as pregnancy by IUI instead of IVF or pregnancy by intercourse instead of IUI. In addition, other groups have suggested that vasectomy reversal may represent a more cost-effective option compared to IVF in couples with adequate ovarian function.^30,32,33 While over eight million children have been conceived by IVF, concern remains about risks to the reproductive and overall health of offspring due to gamete manipulation, embryo culture, cryopreservation, and other manipulation that does not occur with natural conception.^34-36 Whether the adverse outcomes observed in offspring relate to the use of the technology itself or the underlying conditions causing infertility in one or both parents remains uncertain. Nevertheless, it is clear that a reasoned approach to the evaluation and treatment of male infertility is warranted.

To help maximize reproductive health of the patient, the clinician must attend to a man’s overall health. It is recognized that aberrations in reproductive fitness may be a harbinger of medical diseases in men. Investigators have demonstrated that 1-6% of men evaluated for infertility have significant undiagnosed medical pathology including malignancies even when they have a so-called “normal” SAs.^4,37 Infertile men also have a higher rate of medical comorbidities (e.g., hypertension, hyperlipidemia, obesity, diabetes) that can contribute to impaired fecundability.^38,39

The evaluation of men with abnormal SAs and/or abnormal reproductive history, including physical examination and selected laboratory and radiologic assessment, requires expertise in male anatomy and physiology. As such, just as all infertile women are treated by those with specialized gynecologic training and expertise, so should all infertile men be evaluated by specialists in male reproduction.⁴⁰

The role of the male partner after failed ART cycles is not always considered. Even with a "normal" SA, a sperm that appears morphologically and functionally normal may not be chromosomally normal or may have a high level of DNA fragmentation. In this clinical setting, the male partner should be evaluated by a male reproductive expert and consideration given to evaluation of sperm DNA fragmentation and karyotype testing of the male. Some experts would also consider sperm aneuploidy testing, although this test is not universally available for all centers.

Male infertility or abnormal SA may be a harbinger of medical diseases in men. While abnormal SA is not synonymous with male infertility, most specific male infertility diagnoses are associated with abnormal SA.

Comorbidities

As noted in the indications for male evaluation, studies suggest that 1-6% of men have undiagnosed medical diseases at the time of an infertility evaluation.^4,37 It is increasingly recognized that reproductive and overall health are related with infertile subjects having more comorbidities compared to fertile controls.⁴¹ Indeed, the referenced report found a relatively large amount of evidence investigating whether men with abnormal SAs have higher rates of medical comorbidities including one systematic review and eleven studies reporting increased medical comorbidities associated with abnormal SAs.^42-52

A recent metanalysis⁵³ identified three studies of the Charlson Comorbidity Index (CCI), each of which reported a positive association with abnormal SA. In contrast, the single-center study by Cazzaniga et al.⁴³ of an infertility clinic (2,185 men) found no substantial association between semen abnormalities and having a CCI of 1 or more (multivariate odds ratios [OR] 1.03 for oligozoospermia, 1.03 for teratozoospermia, and 0.97 for asthenozoospermia). The conflicting results for associations between CCI and semen abnormalities (three studies were positive, and one showed no association) may be due to different choices and the amount of confounding variables.⁴³ Cazzaniga et al. controlled for age, testicular volume, FSH level, varicocele, and other semen abnormalities, which is a relatively large number of variables. The two studies assessed by Glazer et al.⁵³ may have controlled for fewer variables (specific variables not reported), so their positive findings may not persist if more control variables were used.

In addition, data suggest that infertile men have a higher risk of incident disease (new cases diagnosed).³⁸

Cancer

For the systematic review, four studies specifically analyzed testicular cancer (two moderate-quality and two low-quality),^44-47 and all four found that men with abnormal semen parameters had higher rates of testicular cancer. The fifth study analyzed cancer in general (i.e., all types together) and found that men with azoospermia had higher cancer rates than others.⁴⁸ One study by Hanson et al. also specifically analyzed other cancers (e.g., prostate, melanoma), and all associations with abnormal semen parameters were inconclusive.⁴⁵ A large nation-wide observational study reported that men who became fathers using ART were 64% more likely to develop prostate cancer with an 86% risk of early disease.⁵⁴ The fathers with a history of ART use appeared to have a similar risk of significant prostate cancer, reflected by similar need for androgen-deprivation therapy.

Mortality

Glazer et al. published a systematic review of three studies that also considered aspects of study quality⁵³ in which mortality rates were positively associated with abnormal SAs.⁵³ This review was rated as moderate-quality as some of the men may have had multiple infertility conditions.

Other comorbidities

Other individual studies have looked at specific comorbidities (e.g., diabetes, hypertension, multiple sclerosis, sexually transmitted infections, thyroid disorders) with uncertain associations with male infertility.^51-53,55

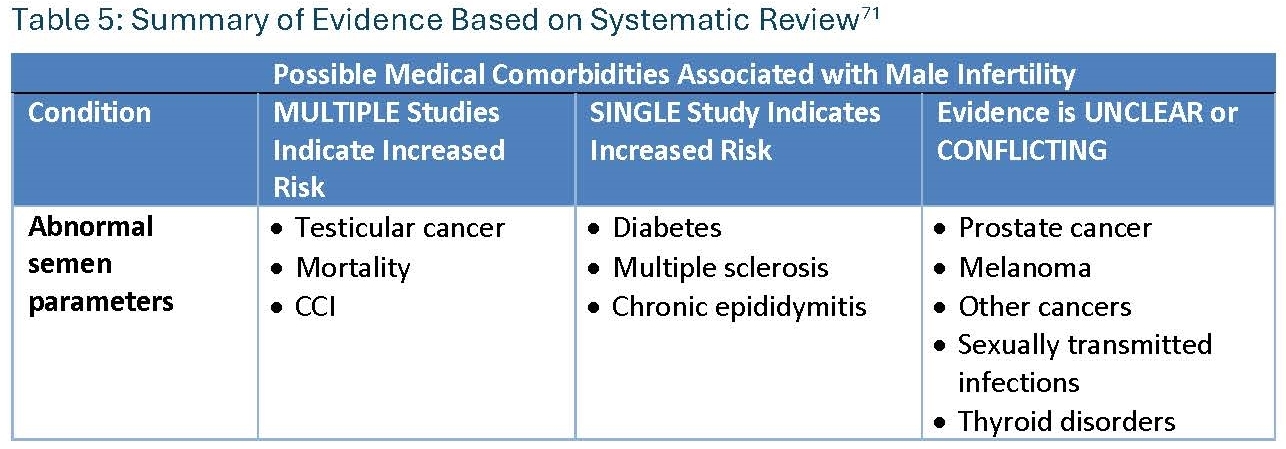

Table 3: Summary of Evidence Based on Systematic Review⁵⁶

An assessment of a man’s reproductive health includes an evaluation for etiologies. Over 50% of the time, the cause of a man’s infertility can be attributed to several known conditions bearing other health implications. It is important for the clinician to understand the various etiologies of male infertility and provide adequate counseling regarding associated conditions or consider referral to a specialist for the diagnosed conditions (Table 4).

Klinefelter syndrome is associated with testosterone deficiency, abnormal muscle mass and pubertal development, decreased facial/body hair, gynecomastia, autoimmune disorders, osteoporosis, and impaired spermatogenesis.^{57, 58} Cystic Fibrosis (CF) is also associated with male infertility (i.e., obstructive azoospermia) as well as pulmonary problems, pancreatic deficiency, and dental carries.⁵⁹ Cryptorchidism is associated with infertility as well as a higher risk of testis cancer and can occur with other genitourinary abnormalities such as hypospadias.^{44, 60, 61} Testosterone deficiency is associated with impaired spermatogenesis and is a risk factor for diabetes, metabolic syndrome, cardiovascular disease (CVD), hypertension, all-cause mortality, CVD mortality, and Alzheimer’s disease.^62-64

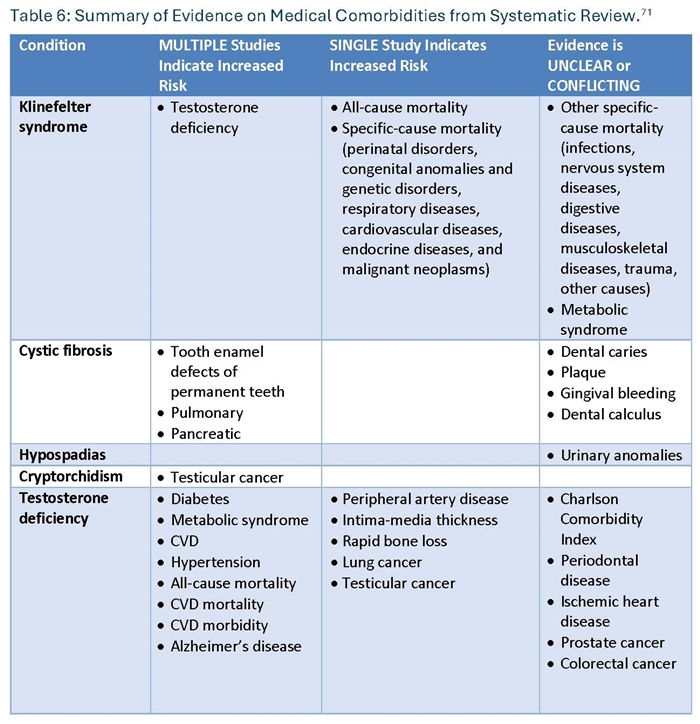

Table 4. Summary of Evidence on Medical Comorbidities from Systematic Review.⁵⁶

The systematic review by Johnson et al. included 90 studies on the association between age and male infertility.⁶⁵ The review examined correlations between age and seven semen parameters: semen volume, sperm concentration, total sperm count, sperm motility, progressive motility, % with normal morphology, and sperm DNA fragmentation. All except sperm concentration were consistently associated with small age-dependent declines (i.e., semen parameters decrease as age increases) in multivariate analyses (Table 5).

There are also potential impacts on the offspring. Data indicate that advanced paternal age increases de novo intra- and inter-genic germline mutations, sperm aneuploidy, structural chromosomal aberrations, birth defects, and genetically-mediated conditions (e.g., chondrodysplasia, schizophrenia, autism) in the offspring.^66-68 There is no clear definition for advanced paternal age. In an extensive evaluation of studies on the effects of paternal factors and perinatal and pediatric outcomes, the authors report that most studies used 40 years and above as the age limit.⁶⁹ While this association is not equated with causality, genetic counseling may be appropriate for couples with advanced paternal age to discuss the magnitude of these risks.

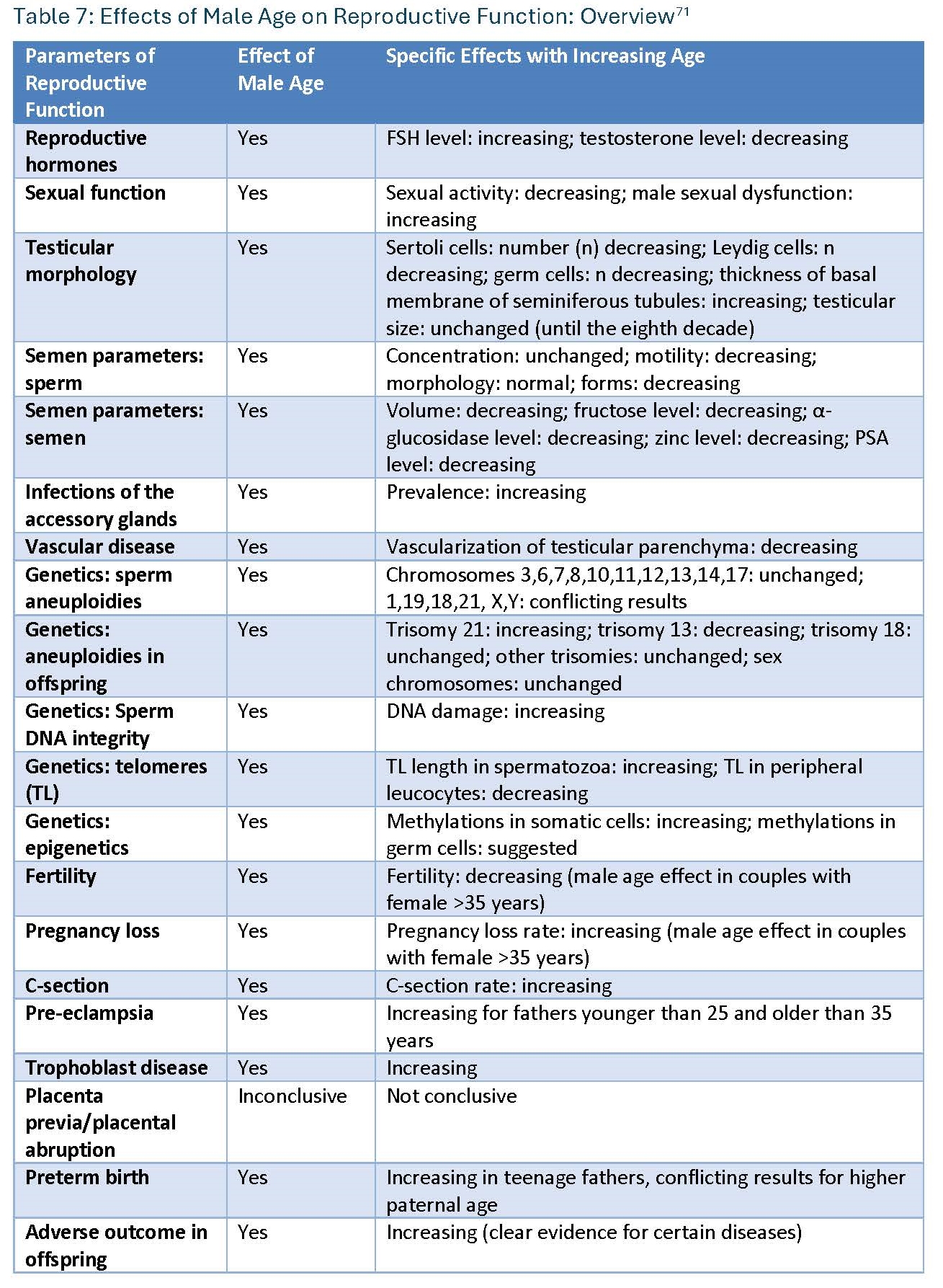

Table 5: Effects of male age on reproductive function: overview^56,65,70

While several putative risk factors for male factor infertility (e.g., demographic, lifestyle, medical treatments, environmental exposures) have been studied, data are limited due to the difficulty in isolating specific factors. Systematic reviews of the data are mostly inconclusive because the majority of the studies evaluated failed to adequately control for confounding variables. The absence of validated outcomes predictive of male fertility is another weakness in determining cause and effect between a particular risk factor and infertility. Most studies evaluated semen parameters as a surrogate outcome for male fertility. Given that few risk factors were determined to be “independent” risk factors for male infertility, a set of possible risk factors, most of which are correlated with each other, are discussed. The controllability of exposures is of clinical relevance.

The clinician should discuss with the patient what he can do to modify or prevent exposure to risk factors for infertility. A summary of the risk factors evaluated in the systematic review used to inform this guideline can be found in Table 6.

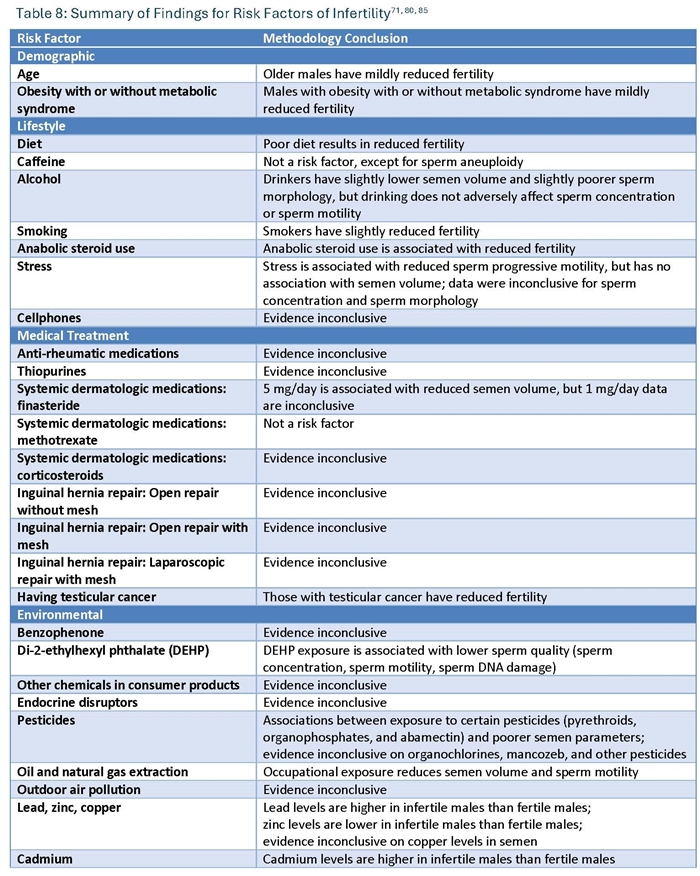

Table 6. Summary of findings for risk factors of infertility⁵⁶

Lifestyle

Lifestyle issues, while important, are very difficult to study, particularly due to the lack of controls and risk of recall bias. Numerous studies have attempted to correlate these lifestyle factors with semen parameters and/or fertility, but very few have been found to be a significant risk. The statements below summarize these findings.

There is low-quality evidence for low association between diet and male infertility. Similarly, low-quality evidence (due to high risk of bias) exists to link smoking with a small impact on sperm concentration, motility, and morphology. The effects of smoking on DNA fragmentation were not specifically studied. Low-quality evidence for a small decrease in progressive motility is associated with stress, while cell phones have been shown to have no impact based on low-quality evidence. Further, there is low-quality evidence for no impact of anabolic steroids/exogenous testosterone on permanent infertility (not reversible); however, current use has a major impact on current fertility and spermatogenesis. Ongoing use of anabolic steroids suppresses spermatogenesis and interferes with fertility, whereas there is low quality evidence for no impact on permanent infertility.

There is moderate quality evidence of no association (except possibly sperm aneuploidy) between caffeine and male infertility, while high-quality evidence exists on the mild impact of alcohol on semen volume, sperm morphology (although not clinically significant).

In terms of exercise, a clinician may advocate for regular resistance and/or high-intensity exercise in sedentary, infertile men with abnormal semen parameters in order to improve pregnancy and live birth rates.⁵⁶ No systematic reviews met inclusion criteria for the following risk factors: recreational drug use, sleep, sports/exercise, heat exposure, type of underwear, or anatomic abnormalities of genitalia.

Medical Considerations

There is low-quality evidence for the medications listed in Table 6, none of which had any significant impact except for finasteride, which has been associated with decreased semen volume and appears to be dose-dependent. It is recommended that if there is concern about the influence of a particular medication on fertility, clinicians may consult databases with data on reproductive effects of medications such as REPROTOX® for additional information.⁷¹

Previous Surgery

There is moderate-quality evidence that found the impact of hernia repair on reproductive function to be inconclusive. However, it did not distinguish between unilateral and bilateral, nor the age at which the surgery took place. Further, there is moderate-quality evidence that having testis cancer impacts sperm count and concentration, but evidence is inconclusive regarding impact on motility and morphology. Additionally, it was difficult to ascertain the impact of losing a testicle (as opposed to just having testicular cancer), as well as some of the hormonal abnormalities seen, such as elevated human chorionic gonadotropin (hCG).

Environmental Factors

Studies evaluating the impact of environmental factors on male fertility are difficult to conduct and analyze because many chemicals are ubiquitous, methods of measurement of exposure are inadequate, few biomarkers of toxicity are validated, and confounding factors complicate the interpretation of the data. Of the putative toxicants studied, evidence of an association between exposure and male infertility was determined to be conclusive for some heavy metals and pesticides, while further data indicate a potential association between the phthalate DEHP and male infertility.⁵⁶

The data reported for the relationship between in utero exposure or early postnatal exposure to estrogenic and/or androgenic endocrine disruptors and infertility (sperm count), cryptorchidism, hypospadias, and testicular cancer were all considered to be inconclusive.^72,73 Inconclusive evidence was found for benzophenones, bisphenol A (BPA), chlorinated antimicrobial agents, parabens, and air pollution.⁷⁴

Lead has been documented to be a reproductive toxicant for many years.⁷⁵ Routes of exposure include ingestion, inhalation, or skin contact. Sites of lead toxicity are the central nervous system and the gonad, causing direct interference with the ability of spermatozoa to undergo the acrosome reaction, thus leading to infertility. Although lead is regulated in many countries, lead continues to be found in all parts of the environment, including air, soil, water, cosmetics, ammunition, batteries, and lead-based paints, pipes, and plumbing materials in older homes in many countries. Lead in water sources is of particular concern.⁷⁶ The environmental and occupational exposure to toxic levels of lead also continues to occur in a number of industries that use lead in manufacturing.⁷⁷ For those patients thought to be at risk for heavy metal toxicity, serum testing may be performed; however, lead levels in the blood may not reflect the total lead burden throughout the body.⁷⁸ Cadmium has also been implicated as a reproductive toxicant.⁷⁹

Similarly, agricultural chemicals were amongst the first chemicals to be implicated as male reproductive toxicants. Humans are exposed in the workplace and in the environment through ingestion, inhalation, and skin contact. Indeed, the documented toxicity of 1,2-dibromo 3-chloropropane (DBCP) and p,p’dichlorodiphenyltrichloroethane (DDT), resulted in heavy regulation or elimination of use in many countries.⁸⁰ Organophophates and pyrethoids may be associated with altered sperm parameters.⁸¹

Phthalates are alkyl or di-alkyl esters of 1,2-benzenedicarboxylic acids. They are primarily used as plasticizers and as solvents. High molecular weight phthalates (DEHP, Diisononyl phthalate (DINP), Dioctyl Phthalate (DOP)) are found in hundreds of products including medical tubing, vinyl flooring, automotive plastics, plastic packaging film and sheets, plastic clothing, and garden hoses. Low molecular weight phthalates (Dimethyl phthalate (DMP), Diethyl phthalate (DEP), Dibutyl phthalate (DBP)) are widely used in personal care products and are also found in enteric-coated medications. The route of entry is primarily oral and transdermal, and these chemicals are rapidly metabolized and excreted in the urine. In the 2003-2004 National Health and Nutrition Examination Survey, the majority of subjects tested had measurable levels of phthalate metabolites in their urine.⁸² The mechanism of toxicity is thought to be due to modulation of androgen/estrogen action. Data obtained through animal studies are more robust than clinical data with clinical studies reporting an association between exposure and possible adverse effects on sperm concentration and motility.⁸³

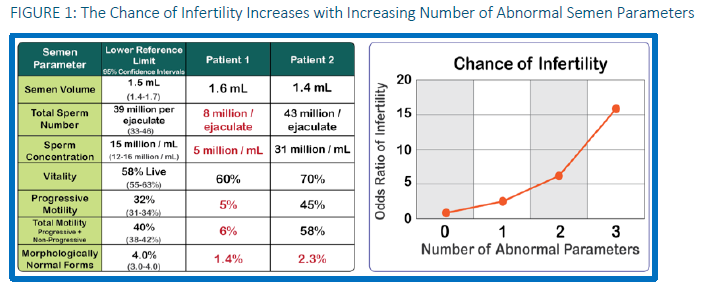

The individual semen parameters measured in the SA provide a weak indicator of fertility potential. Abnormalities in any one or more of these parameters can compromise a man’s ability to naturally impregnate his female partner except in cases of azoospermia, some types of teratozoospermia (e.g., complete globozoospermia), necrozoospermia, or complete asthenozoospermia. With the exception of the aforementioned anomalies, none of the individual sperm parameters (e.g., concentration, morphology, motility) are diagnostic of infertility. The OR for infertility increases as the number of abnormal parameters increases. ²⁶ Clinicians managing results from a SA should counsel patients that multiple significant abnormalities in semen parameters increase their RR for infertility. For example, Figure 1 shows SA results for two patients being evaluated for male infertility. The table shows that Patient 1 has oligozoospermia (sperm count <15 million sperm/mL), athenozoospermia (low motility), and teratozoospermia (abnormal morphology). Based upon the Guzick et al. 2001 findings, this man has a higher OR (of 15) of infertility because he has three abnormal semen parameters. ²⁶ Patient 2 has just one abnormality (decreased morphology) with a slightly increased OR of about 2.5 (Figure 1). While RR of infertility for an individual patient can be estimated, it is usually not possible to predict whether a patient is fertile or infertile based solely on SA parameters. ²⁶

Although there is some controversy in the literature, an endocrine evaluation of the infertile male is not recommended as a primary first-line test in the evaluation of male infertility. ASRM states that an endocrine evaluation is warranted when the clinical findings or impaired sexual functioning suggests a defined endocrinopathy.⁸⁴ Testosterone levels should be defined based upon a blood sample drawn in the morning, since levels drop during the day. Endocrine testing is also suggested for oligozoospermic patients, particularly, men with sperm concentrations below 10 million/mL.⁸⁵ It is noteworthy that some experts still consider an endocrine evaluation important for all male infertility patients.^86,87 Given the frequent administration of exogenous testosterone to men in the absence of laboratory data consistent with a diagnosis of testosterone deficiency, evaluation of the gonadotropins (luteinizing hormone [LH] and FSH), as well as testosterone, may be warranted for men with oligozoospermia or azoospermia.

If the fasting morning total testosterone level is low (<300 ng/dL),⁸⁸ a repeat measurement of total and free testosterone (or bioavailable testosterone) as well as determination of serum LH, estradiol, and prolactin levels should be obtained. Testosterone is present in the blood as free testosterone (once considered to be the only biologically active form of testosterone) and testosterone bound to proteins in the serum (albumin, sex hormone binding globulin). Albumin, an abundant serum protein, binds testosterone albeit at much lower affinity than sex hormone binding globulin. The albumin-bound testosterone readily dissociates; presently, both free testosterone and testosterone bound to albumin are considered to be bioavailable testosterone that can subsequently diffuse into cells and bind to androgen receptors in steroid responsive target cells to elicit a cellular response. Although serum gonadotropin levels are variable because they are secreted in a pulsatile manner, a single measurement is usually sufficient to determine a patient’s clinical endocrine status. The relationship of testosterone, LH, FSH, and prolactin helps to identify the clinical condition. A “normal” serum FSH level (normal ranges for adult males vary somewhat by testing platform used for measurement, generally in the range of 1.0 - 20 mIU/mL) does not guarantee the presence of intact spermatogenesis; however, an FSH level even in the upper range of this reported “normal” range (above approximately 7.6 mIU/mL)⁸⁹ is indicative of an abnormality in spermatogenesis. Prolactin is measured as well for men seeking evaluation of male sexual dysfunction. Once thought to be detrimental to male sexual function/libido when elevated (i.e., due to a pituitary adenoma/prolactinoma or other hypothalamo-pituitary disease), more recent studies show that low prolactin levels in males may be associated with male sexual dysfunction, as well.⁹⁰

Azoospermia is defined as absence of sperm in the ejaculate. The history and physical examination can provide important insights when differentiating obstructive azoospermia from NOA. When a semen analysis shows azoospermia, the laboratory should then centrifuge the ejaculate and re-suspend the pellet in a small volume of seminal plasma and examine under wet mount microscopy for the presence of rare sperm. If no sperm are present, a second SA should be performed at least one to two weeks later. If the sample is azoospermic, then another pellet analysis should be performed.

Azoospermia is distinguished from aspermia (absence of antegrade ejaculate; dry ejaculate) and RE (where semen with sperm are released into the prostatic urethra but travel backward (retrograde) into the bladder). RE can be present in men with various neuropathies (e.g., diabetes, spinal cord injury, after RPLND) and can be diagnosed with a post-ejaculate urine analysis designed for sperm assessment in the presence of a dry ejaculate. Viable sperm from urine or any location within the male reproductive tract can be used with ART to achieve a pregnancy. ⁹¹

A low volume, acidic pH, azoospermic ejaculate can be indicative of obstruction in the genital tract. ⁹² Obstructive azoospermia is suspected if the physical examination reveals testes of normal size, fully descended into the scrotum and bilaterally indurated epididymides with or without absence of the vas deferens. In these cases, FSH levels are usually less than approximately 7.6 IU/L (see table 7). ⁸⁹ In contrast, when the testes are atrophied and soft, especially in the presence of FSH greater than 7.6 IU/L, the results are suggestive of spermatogenic failure rather than obstructive azoospermia. ⁹²

Table 7: Hormonal assessment expected in azoospermic men with severely impaired spermatogenesis, obstruction, and hypogonadotropic hypogondadism

Karyotype abnormalities are the most common known genetic abnormalities that cause male infertility.⁹³ These can be chromosomal numerical anomalies, such as Klinefelter syndrome (the presence of extra X chromosomes). The most common pattern is 47, XXY but more severe cases demonstrate 48, XXXY or 49, XXXXY. Other structural anomalies (deletions, duplications, inversions of a region of an autosomal or sex chromosome) such as a Robertsonian translocation may also result in impaired or absent spermatogenesis.^93-95 Men with Klinefelter syndrome should be counseled that few non-mosaic XXY men will have sperm in the ejaculate and medically-unassisted paternity is rare.^96-100 However, there may be rare foci of spermatogenesis found upon microdissection-testicular sperm extraction (micro-TESE) in approximately 50%-60% of 47, XXY men. While no cases of sex chromosome aneuploidy in the offspring conceived after use of these sperm for ICSI have been reported, preimplantation genetic screening of embryos should be offered given the potential risk of transmission of sex chromosome aneuploidy to offspring. XX males with large duplications of the X chromosome and translocation of the sex determining region (SRY) gene from the Y chromosome can have a normal male phenotype, but testicular histology will demonstrate a complete Sertoli cell only pattern with atrophy and hyalinization of the seminiferous tubules. In addition, decreased serum testosterone and elevated estrogen and gonadotropin levels are usually present.⁹³ For these men, sperm will not be found if TESE is attempted, and these couples should be counseled that other pathways to parenthood should be considered. Robertsonian translocation (the most common type of balanced translocation) carriers (who usually have a normal phenotype) and/or their partners are at a higher risk for infertility, miscarriage, or chromosomally unbalanced offspring. They should be counseled regarding these risks and the need for ART with preimplantation genetic testing for aneuploidies.

Y chromosome microdeletions are the second most common known genetic cause of infertility in the male. The majority of (but not all) genes on the Y chromosome encode proteins involved in testis determination or spermatogenesis. Y chromosome microdeletions can result from errors that occur during homologous recombination during meiosis due to the palindromic structure of the chromosome. The Azoospermia Factor (AZF) region on the long arm of the human male chromosome consists of three areas encoding genes involved in spermatogenesis (AZFa, AZFb, AZFc). Although sperm may be found in the ejaculate of some men and through TESE in approximately 50% of men with an AZFc deletion, sperm have not been retrieved by TESE in men with complete AZFa and/or AZFb microdeletions. Partial deletions of AZFa, AZFb, or AZFc are a bit more problematic to interpret because there is no standardization of the clinical Y diagnostic test for partial deletions of AZF subregions.^101,102 Many commercial laboratories use a limited number of primer sets over the AZF a, b, c regions in their Y chromosome microdeletion assay that may miss smaller microdeletions; these results can impact clinical choices for these patients. For example, men with a partial deletion of AZFa encompassing a DDX3Y deletion had spermatogenic failure, but a smaller AZFa deletion of just USPY9 showed no effect on spermatogenesis.¹⁰² There was a similar finding for small AZFb microdeletions.¹⁰³ A higher resolution view of AZFa, b, and c based upon more detailed analysis of these regions by the clinical laboratory will further aid in the counseling of patients regarding the feasibility of finding rare sperm on testis biopsy or TESE. As such, the clinician is advised to consider these testing challenges when interpreting Y chromosome microdeletion test results. Thus, knowledge of which region(s) of AZF is microdeleted aids in clinical decision-making, as men with complete deletions of AZFa and/or AZFb should not undergo TESE for ART. Men with deletions of AZFc and smaller partial deletions of AZFa and/or AZFb should be counseled that sperm may or may not be found with TESE.^104,105

CFTR is located at the q31.2 locus of chromosome 7 and encodes a cyclic adenosine monophosphate (cAMP) dependent chloride channel. This channel is found in the apical membrane of secretory epithelial cells and is the gene responsible for CF, a congenital disease characterized by pulmonary obstruction and infection, exocrine pancreatic insufficiency. As CFTR regulates anion transport and fluid secretion in the excurrent ducts, it is thought that dysregulation of proper fluid dynamics leads to obstruction and/or atrophy in the epididymis and vas deferens during embryogenesis.^106,107 Indeed, some men with otherwise idiopathic genital tract obstruction are found to harbor mutations in the CFTR gene. In a study of 198 men, 34% of men with idiopathic obstruction had a CFTR mutation; 5 men had 2 mutations (including poly T), and 14 men had one mutation.¹⁰⁸

Specifically, studies suggest that mutations in the CFTR gene are present in up to 80% of men with congenital bilateral absence of the vas deferens (CBAVD), 20% of men with CUAVD and 21% of men with idiopathic epididymal obstruction.^108-110 While vasal abnormalities are apparent on physical examination, epididymal obstruction may only be diagnosed at the time of surgical exploration. As such, CFTR testing may necessarily occur after surgical treatment in some men.

To date, there have been over 1,500 mutations reported in the CFTR gene.¹¹¹ However, the frequency of many of these deletions are low with others having uncertain clinical significance. Several CF mutation testing approaches are offered by clinical laboratories that target the most common and pathologically verified mutations. However, the mutations more likely to cause obstructive azoospermia may be different than those that cause CF.¹⁰⁸ In addition, there are different CF mutation frequencies based on race/ethnicity.^112-115 As the goal of genetic testing is to help identify the etiology as well as provide counseling on potential offspring transmission, expanded carrier screening or gene sequencing should be considered. In addition to classic mutations, the 5-thymidine (5T) variant of the polythymidine tract in the splice site of intron 8 (which regulates exon 9 splicing efficiency) is also commonly found in men with obstructive azoospermia due to CFTR abnormalities. Thus, “5T” analysis along with the CFTR mutation analysis is indicated to identify the etiology for vasal agenesis and to consider for preimplantation diagnosis if the female partner is a carrier. Men with vasal abnormalities may have one or two mutations identified on screening.¹⁰⁸ While CFTR mutations are the most common, mutations in other genes such as the Adhesion G Protein-Coupled Receptor G2 (ADGRG2) gene may cause CBAVD.¹¹⁶

It should be noted that ACOG pre-conception counseling guidelines include offering genetic screening, including CF mutations, for all couples considering pregnancy.¹¹⁷

The goal of genetic testing for a CFTR mutation is to help identify the etiology of infertility as well as provide counseling on potential offspring transmission. CF is inherited in an autosomal recessive manner meaning that one defective allele must be inherited from each parent for a child to be affected.¹¹³ Individuals with only one mutation are carriers but do not harbor the disease.

In cases where the male patient has a mutation in the CFTR gene and the partner is also a carrier, then there is a risk of an affected offspring (25% if both partners are carriers, and up to 50% if the male has mutations in both alleles with a female partner who is a carrier). While the carrier prevalence does vary by race/ethnicity (4% of Caucasian Americans, ~2% of Hispanic Americans, 1.5% of African Americans, 1% of Asian Americans), mutations are not uncommon in the United States.^112-115 Thus, the female partner should also be screened for CFTR carrier status, as is routinely done in pre-conception counseling. In addition, formal genetic counseling should also be considered for a discussion of carrier status, genetic hereditability, and preimplantation genetic diagnosis for any couples who test positive for a mutation.

There are no prospective studies that have directly evaluated the impact of DNA fragmentation testing on the clinical management of infertile couples (i.e., that the fertility outcomes of those who had testing are different from those who did not). Further, available data are inadequate to conclude that this assay should be routinely performed in the initial evaluation of the infertile male. In available studies, DNA fragmentation was negatively associated with pregnancy rates and positively associated with miscarriages. That said, the association of high levels of DNA fragmentation with pregnancy outcomes is unclear given the variability in the definition of the upper limit of normalcy in different studies and the use of different tests of DNA fragmentation.^118-122 For male partners with high sperm DNA fragmentation, a clinician may counsel them that there is a possible association with infertility and compromised outcome after ART.

In a patient with high sperm DNA fragmentation, a clinician may consider using surgically obtained sperm in addition to ICSI. Therefore, DNA fragmentation testing may be advantageous for men in couples undergoing IVF with repeated IVF failure. Physicians should be aware that there are some data to suggest that men with very high levels of DNA fragmentation in ejaculated sperm typically have sperm with lower levels of DFI; this in combination with IVF may improve fertility outcomes. Therefore, a clinician may consider using testicular sperm as opposed to ejaculated sperm for IVF/ICSI. In a prospective cohort study of over 100 couples with high DNA fragmentation, testicular sperm yielded substantially higher live birth rates than ejaculated sperm.¹²³ The routine clinical application of this practice remains controversial as the quality of the study data is low. However, some clinicians would only retrieve testicular sperm if prior attempts to achieve a pregnancy fail after the use of ejaculated sperm for IVR.

DNA fragmentation study results are not always consistent due to a variety of factors including inconsistent cutoff values defining the normal and abnormal ranges, non-standardized protocols, the use of different testing assays measuring unrelated parameters for assessment of DNA fragmentation, and the lack of RCTs. That said, it is possible that very high levels of sperm DNA fragmentation will have a more substantial adverse impact on pregnancy outcomes with IVF as well as an increased risk of miscarriages. Studies have also suggested that decreased abstinence may be an intervention to limit sperm DNA damage.¹²⁴

Increased levels of round cells in the semen may result from a spermatogenic problem where spermatocytes and/or round spermatids are present in the ejaculate or from the presence of elevated levels of white blood cells in the semen (pyospermia). The WHO has defined the upper limit of normal as <1 million white blood cells/mL of semen.⁵ Special stains are required to differentiate germ cells and somatic cells. A Papanicolaou staining procedure on a specimen smear may be used, but differentiating subtle differences in staining coloration, nuclear size, and shape can be challenging. A relatively simple assay is the o-toluidine test for cellular peroxidase (peroxidase stain) that will not stain leukocytes that have released their granules or lymphocytes, macrophages, or monocytes, which do not contain peroxidase. Immunocytochemical staining using antibodies specific for common leukocyte antigens is used to more precisely identify the seminal fluid white blood cells.⁵ In contrast to peroxidase staining, the immunocytochemical method provides more information to aid in distinguishing between inflammation and those subtypes involved in fighting off infection. There is no evidence that elevated levels of immature sperm in the semen is deleterious to fertility, although they may be present in semen of infertile men and fertile men with high sperm counts.

White blood cells in the semen may result from infection or inflammation in the proximal or distal male genital tract. Chronic prostatitis due to bacterial infection may require long courses of antibiotic treatment, and some cases of elevated levels of white blood cells may result from chronic nonbacterial prostatitis. Inflammation may be medically treated with anti-inflammatory drugs. Accordingly, it is important to know whether men with elevated levels of round cells in the semen have immature germ cells (a condition that cannot be treated) or an infectious or inflammatory etiology. While elevated semen white blood cells may secrete cytokines and generate free radicals in the semen (reactive oxygen species) that may be detrimental to sperm function, this is not a test of fertility.

ASA can result from events such as trauma, mumps orchitis, testis malignancy, vasal obstruction, vasectomy that disrupts the blood-testis barrier, or the patency of the male genital tract allowing sperm antigens or genital tract infections to generate ASA.¹²⁵ ASA can result in sperm agglutination in the semen. ASA may be present without sperm agglutination and, conversely, agglutination may be present due to other factors, such as the presence of E.coli in the semen.⁵

IgA and IgG antibodies are the predominant antibodies found in semen, while IgM is rarely found. However, some laboratories measure all three immunoglobulin classes due to presence on sperm and in biological fluids. Tests used for ASA include the mixed antiglobulin reaction test, which provides less information, and the immunobead (IB) test, which gives information about the type and presence of the immunoglobulins and their localization specifically on the sperm head, midpiece or tail or covering the entire sperm.⁵ In some cases, the test results may not be in agreement between these two distinct assays. For analysis of antibodies in semen, there are two versions of these tests- direct and indirect; for example, the direct IB test uses washed patient and control spermatozoa that are incubated with small beads with antibodies specific for IgG or IgA attached and are prepared in the laboratory. The IB will adhere to motile and immotile sperm that have surface bound antibodies. The percentage of motile sperm with the beads attached are counted.⁵ Indirect assays are used to measure sperm-specific immunoglobulins in sperm free fluids (seminal plasma, heat-inactivated blood serum and solubilized cervical mucus). In this case, aliquots of the fluid of interest or control immunoglobulins negative for sperm binding are incubated with normal control donor sperm prior to performing the mixed antiglobulin reaction or IB tests. Indirect testing is advantageous when the patient sample is oligozoospermic or asthenozoospermic (alone or in combination), when there is obstructive azoospermia, or when a sample cannot be immediately assayed. Depending upon collection time, the seminal fluid may be stored frozen until the time of testing.

ASA can impair sperm-ova penetration; accordingly, ICSI will negate this issue. Although there are few studies of natural conception for men with ASA, the presence of ASA following vasectomy reversal or vasoepidymostomy is well recognized, and older literature suggests that these antibodies impair sperm penetration. However, there were no significant associations between levels of ASA and pregnancy outcomes in these patients. Interpretations of these studies are challenging due to the lack of methodological standardization in these studies or consistent normal ranges.

ASA testing should only be considered if it will affect management of the patient. Conditions and findings reportedly associated with the presence ASA include obstruction of the ductal system (vasal, epididymal), prior testicular torsion, testicular surgery, and the presence of significant sperm agglutination in the SA, suggesting a potential diagnostic role of ASA testing for the detection of obstruction. However, published data on these associations are inconsistent.¹²⁶ The presence of serum ASA in an azoospermic patient with a history and physical exam findings consistent with ductal obstruction may help confirm obstruction.¹²⁷ Some have reported improved IUI pregnancy rates with specific semen processing protocols for couples with ASA compared to standard sperm washing, although the data are limited.¹²⁸ In those with ASA, ICSI yields higher pregnancy rates per cycle than IUI with semen processing designed to disrupt the bound antibodies.¹²⁹ For couples planning on ICSI, ASA testing should not be performed since it will not change management.

The clinician should discuss the importance of paternal structural autosomal defects in the evaluation of the couple with RPL and the need for the male partner to have a karyotype analysis. The contribution of paternal structural chromosomal defects (translocations, inversions, deletions, duplications) is not routinely clinically assessed for infertility, but these anomalies are associated with miscarriage and RPL.^10,11 Indeed, the presence of balanced translocations in either of the affected parents can become unbalanced during homologous recombination that occurs during meiosis in gametogenesis.¹⁰ Unbalanced translocations are associated with birth defects in the offspring conceived as well as pregnancy loss. Robertsonian translocations are an example of a structural chromosomal anomaly associated with pregnancy loss.¹⁰ These anomalies can be present in seemingly unaffected individuals but result in pregnancy loss due to unbalanced translocations. Hence, a karyotype that can reveal numerical and structural chromosome anomalies is indicated. An abnormal karyotype is present in about 6% of all infertile men.^11,130

Infertile couples should be counseled that high levels of sperm DNA fragmentation are positively associated with miscarriage.^131-135 In a meta-analysis, pooled data from 13 studies suggest that male partners of women with a history of RPL have a significantly higher rate of sperm DNA fragmentation compared to the partners of fertile control women: mean difference 11.91, 95% CI 4.97 to 18.86.¹³² Accordingly, DNA fragmentation testing should be considered in couples with unexplained RPL. When present, various treatments have been employed including using TESE with ICSI, antioxidant administration, donor sperm, varicocele repair, and/or frequent ejaculation. Currently there are no well-controlled published studies that evaluated whether any of the aforementioned therapies will decrease the risk of RPL.

When discussing DNA fragmentation test results, clinicians should mention that in infertile couples clinical pregnancy rates were higher with ICSI as compared to insemination with ART.^{11,122,136,137} The basis for this finding is unclear as when sperm are selected for ICSI, it is impossible to know whether the sperm DNA is fragmented.

For couples with RPL, men may be considered for sperm aneuploidy testing. Sperm aneuploidy testing involves the use of fluorescent molecular probes for chromosomes 13, 18, 21, X, Y because the presence of an extra chromosome for these specific chromosomes is consistent with a potentially viable but affected offspring.^11,136-138 Aneuploidy of all other human chromosomes is not consistent with a viable offspring. While aneuploid ova are a well-recognized cause of aneuploid fetuses and offspring (i.e., Trisomy 21 increased incidence with advanced maternal age), the contribution of the male to aneuploid fetuses, offspring, and RPL is rarely considered by the clinician treating the couple with RPL.^138,139 Physicians should consider ordering sperm aneuploidy testing in men with a normal somatic karyotype to identify those men with a defect resulting in improper chromosome segregation during meiosis and aneuploid sperm resulting in a paternal role in RPL. However, this test currently may not be available nationwide. Genetic counseling may be useful, because this knowledge will allow couples to alter their fertility management plan and seek alternative pathways to parenthood, such as preimplantation genetic testing with ICSI-IVF, donor sperm, adoption, or to continue attempting a natural pregnancy.¹⁴⁰ In uncontrolled studies looking at couples where the man had an abnormal sperm aneuploidy test, there appeared to be an improvement in outcomes when PGT-A was utilized.¹⁴¹

Differentiation of obstructive azoospermia from NOA may most frequently be predicted from clinical and laboratory results without the need for surgical diagnostic biopsy. FSH levels greater than 7.6 IU/L and testis longitudinal axis less than 4.6 cm indicate an 89% likelihood of spermatogenic dysfunction as the etiology. ⁸⁹ Conversely, FSH levels less than 7.6 IU/L and testis longitudinal axes greater than 4.6 cm indicate 96% likelihood of obstruction as the etiology. ⁸⁹ In the infrequent cases with intermediate values, testis biopsy may be performed to determine the etiology, but this is not usually necessary. In the rare cases where testis biopsy is done primarily for diagnostic purposes, sperm cryopreservation from the sample should be attempted if ART is an option.

The scrotum may sometimes be difficult to examine, for example in an obese patient or when the dartos muscle remains highly contracted during the physical exam. In these infrequent cases, color doppler ultrasound may be used to examine spermatic cord veins. The standard definition of a varicocele with this technique is the presence of multiple large veins greater than 3 mm in diameter and reversal of blood flow with the Valsalva maneuver.^142,143 However, routine use of ultrasonography to investigate presumed varicocele is to be discouraged, as treatment of non-palpable varicoceles is not associated with improved semen parameters and fertility rates as has been shown for treatment of clinical varicoceles.

For the purposes of an infertility evaluation, TRUS seeks to identify the anatomy of the primary organs/structures involved in ejaculation including the prostate, seminal vesicles, vasal ampulla, and ejaculatory ducts.¹⁴⁴ TRUS can be useful in identifying distal obstruction leading to obstructive azoospermia such as that caused by EDO.

The clinician should be suspicious of distal male genital tract obstruction when the ejaculate volume is low (<1.5mL), with acidic semen (pH<7.0). Most of these men will have absent fructose in semen, although fructose testing is relatively unreliable and is not necessary especially in men for whom there is a high index of suspicion (i.e., SA shows low volume, acidity, azoospermia). For these men, TRUS evaluation should be considered to evaluate for anatomic abnormalities.¹⁴⁵ Other aspects of the ejaculate should be considered. Normal semen is derived from testicular (~10%), prostatic (~20%), and seminal vesicle (~70%) fluid. All components are androgen sensitive so that men with testosterone deficiency may have low semen volume and the utility of TRUS in such circumstances may be low. In addition, seminal vesicle fluid is alkaline. Obstruction that limits or prevents the seminal vesicle contribution will lead to acidic semen (pH <7.0). Men with a normal semen pH are unlikely to have a complete distal genital tract obstruction.¹⁴⁶

Congenital abnormalities may also affect normal genital duct anatomy. Mutations in the CFTR gene can lead to vasal and seminal vesicle agenesis/atresia. In men with CBAVD, TRUS does not contribute to the diagnosis or treatment, so it should not be done for evaluation of such infertile men.¹⁴⁶

Beyond infertility, ejaculatory pain may also trigger evaluation with TRUS as a diagnosis of obstruction may lead to treatment recommendations to improve symptomatology.

In men with normal ejaculation and semen volume, the results of TRUS evaluation will not usually change the management of an infertile male. As such, without symptoms (e.g., painful ejaculation) or semen parameter indications (e.g., low semen volume with azoospermia and palpable vasa, or low semen volume and significant asthenospermia), TRUS should not be included in an infertility evaluation.

Varicoceles occur in approximately 15% of all adult men and 40% of infertile men.¹⁴⁷ While 85% are left unilateral due to asymmetric gonadal vein anatomy, 15% may be either bilateral (more common) or right unilateral (less common). Due to the rarity of the isolated right varicocele, concern has existed regarding causative conditions in clinical cases. Case reports in the literature report retroperitoneal pathology such as tumors as common enough causes to warrant routine abdominal imaging when an isolated right varicocele is identified.^148-150 However, only low-quality evidence has ever supported this recommendation.

A retrospective study of over 4,000 men with varicoceles (8% right), reported no difference in cancer diagnoses in these men based on varicocele laterality (p=0.313) despite the fact that over 30% of men with right varicoceles received abdominal computed tomography scans compared with just 8.7% of men with left varicoceles and 11.2% of men with bilateral varicoceles.¹⁵¹ Thus, routine imaging based solely on the presence of a right varicocele is unnecessary. However, abdominal imaging should be considered for men with a new onset or non-reducible varicocele, especially if varicocele is large.

The male genital tract is derived from the Wolffian or mesonephric tract. It is a paired organ, which forms the epididymis, vas deferens, and seminal vesicles during embryogenesis. As it connects to the primitive kidney, abnormalities in the Wolffian duct can lead to renal anomalies. In men with unilateral absence of the vas deferens, approximately 26-75% of men will have ipsilateral renal anomalies including agenesis.^152,153 In men with bilateral vasal agenesis, the prevalence is lower at 10%.¹⁵⁴ Even in men with CBAVD and CFTR mutations, unilateral renal agenesis may occur.^116,155 As such, abdominal imaging should be offered to men with vasal agenesis regardless of the CFTR status to allow for optimal patient counseling.

The largest most recent meta-analysis by Wang et al. observed higher estimated pregnancy rates for men treated with any approach for repair of clinical varicocele compared to no treatment.¹⁵⁶ Pregnancy rates without treatment were assumed to be 17%, while rates were calculated to be 42% (95% CI 26% to 61%) with subinguinal microsurgical varicocelectomy, 35% (95% CI 21% to 54%) with inguinal microvaricocelectomy, 37% (95% CI 22% to 58%) with inguinal open (non-microsurgical) surgery, and 37% (95% CI 19% to 61%) with laparoscopic surgery.¹⁵⁶ Such findings must be interpreted with caution given that this meta-analysis included studies with non-randomized designs and selective outcome reporting. OR were lower for sclerotherapy, subinguinal open surgery, retroperitoneal open surgery, percutaneous venous embolization, and retrograde sclerotherapy. Bulk seminal parameters including sperm concentration and sperm motility were also observed to be improved with surgery.

For palpable varicoceles, the meta-analysis by Wang et al. observed the calculated estimated pregnancy rates to be 52% (95% CI 24% to 83%) for subinguinal microvaricocelectomy, 53% (95% CI 18% to 90%) for inguinal microvaricocelectomy, 55% (95% CI 27% to 88%) for inguinal open surgery, and 52% (95% CI 18% to 90%) for laparoscopic surgery.¹⁵⁶

A meta-analysis of ART outcomes evaluated the chance of pregnancy using ART for couples where men had varicocele repair relative to couples where the man had an untreated varicocele. In these 7 non-randomized retrospective studies, only men with clinical varicoceles were considered. In this report by Kirby et al., the OR for pregnancy and live birth were 1.76-fold higher for men treated with varicocelectomy prior to ART.¹⁵⁷

Past AUA and ASRM recommendations for non-palpable varicoceles in men with concern for fertility has been to not recommend varicocelectomy, and recent studies continue to support this recommendation.¹⁵⁸ Kim et al. performed a systematic review and meta-analysis of varicocelectomy for subclinical varicocele. Reviewers included 7 trials with 548 participants (276 received varicocelectomy, and 272 received either no treatment or clomiphene citrate). These trials were considered of low-quality due to issues such as unreported random sequence generation and allocation concealment, lack of blinding, and incomplete outcome data. No demonstrable benefit of varicocele repair was observed in pregnancy or bulk seminal parameters with the exception of a possible small numerical effect on progressive sperm motility that is unlikely to be clinically important.¹⁵⁸

Case series of men with NOA and clinical varicoceles have been reported. Since up to 35% of men with NOA will have sperm detected on subsequent SA without medical intervention, such case series must be interpreted with caution.¹⁵⁹ Case studies cannot be considered to reflect a therapeutic benefit of varicocele repair unless controlled. Of note, the studies published to date have not included control patients with varicoceles that were not repaired, and simply had repeat SAs done.¹⁶⁰ Summarized case studies reporting detection of at least one non-motile sperm in the ejaculate after varicocele repair for men with NOA indicated sperm in 36% (119/327) of treated men. Using a different outcome evaluation that may be more clinically relevant in NOA, a study that reported return of adequate motile sperm in the ejaculate to avoid surgical sperm retrieval after varicocele repair had a success rate of only 9.6%.¹⁶¹ These data have to be compared to results of re-analysis of sperm in the ejaculate without any intervention beyond repeat SA using extended sperm search (35%). There are sparse studies with relatively limited numbers of men with azoospermia due to spermatogenic dysfunction that have evaluated the role of varicocelectomy in potentially increasing spermatogenesis. There are no high-quality data to support repair of varicoceles in men with NOA. In addition, varicocele repair defers treatment with ART for at least six months. For the surgeon considering varicocelectomy prior to definitive treatment with surgical sperm retrieval and ART, couples should be informed of the limited evidence supporting the benefit of varicocele repair in azoospermia.

Systematic reviews assessing different sperm retrieval techniques for men with NOA are of low quality mainly due to limitations associated with performing surgical studies. In a meta-analysis of published studies for men with NOA, micro-TESE was observed to result in successful extraction 1.5 times more often than non-microsurgical testis sperm extraction, and testis sperm extraction was 2 times more likely to succeed when compared to testicular aspiration.¹⁶²

Micro-TESE is a surgical procedure that involves wide opening of the tunica albuginea to allow examination of multiple regions of testicular tissue, each of which are oriented in a centrifugal pattern in parallel to the intratesticular blood supply, allowing extensive search of nearly all areas of the testis with limited risk of devascularization of tissue. Conventional TESE has been associated with decreased postoperative testosterone levels, and many men with NOA have baseline testosterone deficiency levels. Less effect on testosterone levels is seen after micro-TESE than with conventional TESE, but testosterone deficiency requiring testosterone replacement remains a risk, even after micro-TESE.¹⁶³

For men with obstructive azoospermia, adequate sperm are typically present to allow sperm cryopreservation with a high chance for survival of those sperm for use with ART. There are no substantial differences in IVF success rates, so sperm retrieval and cryopreservation may be done prior to ART.

For men with NOA, some centers perform simultaneous sperm retrieval with ART because the numbers of sperm obtained may be limited and sperm may not survive cryopreservation. For those couples where the man has NOA and sperm are frozen and survive freeze-thaw, ART is possible with those sperm.

A recent meta-analysis evaluating the use of sperm from men with NOA observed no differences in fertilization, pregnancy, or live birth rates from ICSI in men for whom sperm was extracted and used with or without cryopreservation, as long as there were sperm of adequate number and survived cryopreservation and thawing.¹⁶⁴

While the available studies are of low quality, fertilization, pregnancy, and live birth rates were similar for epididymal and testicular derived sperm in men with azoospermia due to obstruction.¹⁶⁵

Limited data exist comparing outcomes for the various procedures available to obtain sperm from men with ejaculatory dysfunction. Penile vibratory stimulation, electroejaculation, surgical sperm retrieval, or sympathomimetic agents may be utilized depending on the cause of the ejaculatory dysfunction, the patient’s condition, and surgeon’s experience.

It is important to differentiate dry ejaculate (aspermia) from azoospermia, where an antegrade ejaculate is present but lacks spermatozoa. Ejaculatory dysfunction may also include RE with or without an antegrade component, and low volume ejaculate.¹⁶⁶

Partial RE may exist concurrently with partial antegrade ejaculation. If the antegrade specimen is sufficient for reproduction either naturally or with medical assistance, no treatment may be necessary.¹⁴³ However, if the antegrade ejaculate is poor and a substantial RE is present as demonstrated by post-ejaculatory urinalysis, various therapies may be required. These treatments include oral sympathomimetics with alkalinization of urine. These specimens may be collected from voided urine or with urethral catheterization. Many men with lack of emission associated with spinal cord injury or psychogenic anejaculation may also respond to penile vibratory therapy. For men with persistent lack of emission despite medical therapy, then electroejaculation, or surgical sperm retrieval may be employed based on severity, clinical presentation and response to other less invasive therapy.

Limited data exist comparing outcomes for strategies for men interested in fertility after vasectomy.¹⁶⁷ Surgical sperm retrieval will require the use of ART/ICSI to achieve a pregnancy. Critical variates that would influence a couple’s decision-making, such as maternal age and variable economic cost across geographic regions, have not yet been systematically explored with high-quality evidence. For couples with female factors that require ART, sperm retrieval and IVF is often the preferred option for management. For couples interested in fertility who are farther out from vasectomy (e.g., over 25 years after vasectomy), microsurgical reconstruction with vasoepididymostomy may have lower success rates and sperm cryopreservation at the time of reconstruction should be considered. At this time, the specific needs and characteristics of the couple as well as patient preference should be considered and discussed with the provider in order to render the best option for fertility after vasectomy.

Obstructive azoospermia is a condition characterized by an absence of sperm in the ejaculate with normal sperm production in the testis. Both congenital and acquired causes of obstruction have been identified. In men with congenital absence of the vas deferens, sperm retrieval together with ART such as IVF and ICSI are the only options for men to father their own biologic children. In most other cases of acquired or congenital obstruction, microsurgical reconstruction of the male reproductive tract may be the preferable alternative to sperm retrieval and ICSI when the female partner has normal fertility potential. Microsurgical reconstruction as vasovasostomy or vasoepididymostomy has also been suggested as a more cost-effective treatment for obstructive azoospermia, when compared to sperm retrieval and ART.³² The most robust data for microsurgical reconstruction exist for men with vasectomy-associated infertility, since up to 6% of all married men have had a vasectomy for contraception. In this population, microsurgical reconstruction involves surgical exploration with identification of the site of obstruction, which may still be at the vasectomy site or more proximally in the epididymis. Microsurgical reconstruction is done by anastomosing the vas to the most distal site in continuity with the testis, documented by identifying sperm at this region of the reproductive tract. Higher patency and pregnancy rates after reconstruction are associated with bilateral vasovasostomy, more distal epididymal anastomoses (compared to epididymal anastomoses) for vasoepididymostomy, and the presence of intact sperm at the site of reconstruction. Although patients with shorter obstructive intervals have slightly better outcomes compared to men with longer intervals after vasectomy, the patency rate for microsurgical reconstruction more than 25 years after vasectomy have been reported to be more than 70%.^168,169 Preoperative counseling should include discussion of the surgeon’s experience and results after attempted reconstruction, as well as alternative approaches to achieving pregnancy (sperm retrieval and ICSI.)

EDO is rare in infertile men. If the diagnosis is confirmed or suspected based on TRUS findings, then treatment should be considered. Findings on TRUS suggesting obstruction include seminal vesicle anterior-posterior diameter >15mm, ejaculatory duct caliber (>2.3mm), or dilated vasal ampulla (>6mm) as well as prostatic cysts (midline or paramedian (ejaculatory duct). If a seminal vesicle aspirate reveals the presence of sperm in an azoospermic man, then TURED may be offered.^146,170,171 The goal of the surgery is to resolve the obstruction to allow sperm to enter the ejaculate, which can be used for unassisted conception or ART. The clinician should discuss with the patient that 63-83% of patients will have an improvement in semen parameters after the procedure, including 59% of patients with complete EDO and up to 94% of patients with partial EDO.^172-176 Over 90% of men will have improvement in semen volume,¹⁷⁷ 50% will improve sperm counts,¹⁷⁸ and 60% will convert from azoospermia to some sperm in the ejaculate. In addition, 38% of men with azoospermia or oligozoospermia may develop normal semen parameters.¹⁷⁷ While all patients may benefit, data suggest that men with congenital causes (e.g., Mullerian duct cysts) may have better improvement compared to men with acquired obstruction (e.g., infectious etiology).¹⁴⁶ In men with EDO associated with Mullerian cysts, treatment involves unroofing of the cyst, resulting in decompression of the cyst and relief from extrinsic obstruction of the ejaculatory ducts.

In addition to fertility, investigators have reported successful treatment with TURED for other symptoms including hematospermia, recurrent infection, or pain (i.e., scrotal, post-ejaculatory).^4,34 The clinician should also discuss known complications of TURED. Restenosis, pain, epididymoorchitis, urinary retention, reflux of urine into the ejaculatory ducts and seminal vesicles or substantial defects in the prostatic fossa (leading to watery ejaculate), gross hematuria, and incontinence may occur in 4-26% of cases.^{146,173,174,179,180} Restenosis leading to azoospermia is a potentially serious complication in men with partial EDO and may occur in up to 27% of men.^173,176

Surgical sperm extraction (e.g., TESE, TESA, Percutaneous Epididymal Sperm Aspiration [PESA]) for use with ART is an alternative option in men with EDO who desire fertility. The decision for the optimal method should be a shared decision with the patient/couple.¹⁴⁶

One of the greatest advances in the management of male infertility has been the use of IVF and, subsequently, ICSI as ART. Although sperm number and quality affected the results of treatment with IVF, ICSI appeared to abrogate any adverse effects of sperm “quality” as measured by sperm concentration, motility, and morphology as long as viable sperm are present to inject into all oocytes. With IVF, abnormal sperm motility and morphology adversely affect fertilization rates.¹⁸¹ The application of ICSI during IVF treatment provided fertilization rates comparable to that observed with otherwise normal sperm. Although ART does not correct the underlying condition(s) causing male infertility and allows pregnancy for men where natural pregnancy has not previously occurred, these techniques involve limited medical risk to the female partner. Studies to date show limited known differences in birth defect rates between naturally occurring pregnancies, IVF, or ICSI-derived pregnancies. IVF treatment requires more than a week of ovarian stimulation, procedures for oocyte retrieval and intrauterine embryo transfer; each attempt typically allows for a 33% live delivery rate per initiated IVF cycle.¹⁸² Pregnancy and live birth results are closely related to female age, with progressively lower success with increased female age (over 35 years). Approximately 19% of all deliveries involve twins, and additional pregnancies may result from one IVF cycle if additional embryos are available for cryopreservation.

IUI is a fertility treatment that involves processing a semen specimen and placing the low volume washed semen into the uterine cavity at the time of ovulation. The intervention may be done with or without ovarian stimulation of the female partner to enhance oocyte production. In general, SA parameters are not predictive of natural pregnancy or pregnancy by use of ARTs, including IUI, unless severe abnormalities exist. However, converging evidence suggests significant associations between pregnancy by IUI and total motile sperm count. As such, men with low total motile sperm count (<5 million motile sperm after processing) are expected to have lower pregnancy rates after IUI than using sperm from men with normal total motile sperm counts.

Patients with HH present with deficient LH and FSH secretion. In the absence of LH and FSH stimulation, the Leydig cells in the testes do not secrete testosterone, and spermatogenesis is disrupted.¹⁸³ Referral to an endocrinologist or male reproductive specialist is encouraged.

The congenital form idiopathic hypogonadotropic hypogonadism (IHH), also referred to as isolated gonadotropin-releasing hormone (GnRH) deficiency, is a rare genetic disorder that is associated with defects in the production and/or action of GnRH. The original form Kallmann syndrome is an X-linked recessive disorder and is associated with anosmia and the lack of endogenous GNRH secretion and ANOS1 mutations. Other forms of IHH are associated with a number of genetic mutations with variable forms of inheritance and often without anosmia.^184-186 Males with the more severe forms of the syndrome can present with microphallus and/or cryptorchidism as well as skeletal abnormalities such as cleft palate, and syndactyly.

A variant of IHH, referred to as adult onset or acquired IHH, presents with symptoms of sexual dysfunction and/or new-onset infertility and lower levels of testosterone in concert with inappropriately low gonadotropins.¹⁸⁷

Spermatogenesis can be initiated and pregnancies achieved in many of these IHH men when they are treated with exogenous gonadotropins or GnRH. Selection of the type of hormonal therapy as well as the ultimate success of therapy depends on the severity of the defect. The usual first-line drug for the treatment of IHH for restoration of testosterone and spermatogenesis is hCG. The degree of response correlates with the size of the testis prior to treatment.^188-190 Initial treatment with hCG injections (1,500-2,500 IU, twice weekly) followed by FSH, when indicated, after testosterone levels are normalized on hCG. Pulsatile GnRH is not currently approved in the US or Europe. If medical therapy fails to result in a pregnancy, but some sperm are found in the ejaculate, referral for ART is recommended.

SERMs have been used off label as an alternative treatment to increase testosterone and sperm density in men with adult onset IHH following SERM therapy alone with the goal of pregnancy in the partner. Only a small number of studies with very few patients have reported successful pregnancies in men with adult-onset IHH.^191,192

Secondary causes of HH include pituitary or suprasellar tumors, pituitary infiltrative disorders (e.g., hemochromatosis, tuberculosis, sarcoidosis, histiocytosis), exogenous androgens, other medications (e.g., chronic narcotic exposure), hyperprolactinemia, prior head trauma, pituitary apoplexy, and severe chronic illness.¹⁹³ The first line of treatment is directed towards the underlying disorder. Once that has been accomplished, and the patient continues to have HH, a trial of the gonadotropin treatment regimen described above can be initiated. SERM therapy will not be beneficial if the pathology is due to primary pituitary dysfunction, such as after surgical resection.

AIs, hCG, and SERMs act by different mechanisms to increase endogenous testosterone production. Each agent may be used separately or in combination in an effort to increase serum testosterone concentrations without impairing spermatogenesis. Although hCG is FDA-approved for use in men with HH, the other medications are not approved by the FDA for use in men. Furthermore, although the goal of testosterone optimization in the infertile male may be symptom amelioration, symptomatic outcomes and benefits may not be comparable to those achieved using standard (exogenous) testosterone replacement therapy.

Testosterone is converted to estrogen peripherally by the enzyme aromatase. AIs are oral medications that block this conversion, resulting in a relative decrease in serum estradiol levels, increase in LH secretion by the pituitary, and a relative increase in serum testosterone concentration. Clinicians may consider use of AIs for men with testosterone deficiency and elevated estradiol levels.^194,195

hCG is an injectable medication that acts as an LH analogue, stimulating testosterone production by direct action on the Leydig cells. SERMs are oral medications that have antiestrogenic effects centrally, impeding negative feedback of the hypothalamic-pituitary-testis axis. Clomiphene citrate is the most commonly studied SERM for infertile men. Treatment with SERMs results in increased LH and FSH production by the pituitary gland; the increased LH production, in turn, stimulates Leydig cell production of testosterone. Clinically, either hCG or SERMs may be considered for testosterone optimization in men with low or normal serum LH. Men who exhibit an elevated LH, consistent with primary hypogonadism, may have a limited serum testosterone response to these medications due to inherent testicular dysfunction.

For further information on the management of testosterone deficiency, please refer to the AUA Guideline on the Evaluation and Management of Testosterone Deficiency, specifically Statement 27 and Table 6: https://www.auanet.org/guidelines/testosterone-deficiency-guideline.

Exogenous testosterone administration provides negative feedback to the hypothalamus and pituitary gland, which can result in inhibition of gonadotropin secretion. Depending on the degree of testosterone-induced suppression, spermatogenesis may decrease or cease altogether, resulting in azoospermia.¹⁹⁶ Although recovery of sperm to the ejaculate occurs in most men with cessation of testosterone therapy, the time course of recovery may be prolonged and can be months or rarely years.¹⁹⁷ Therefore, testosterone monotherapy for symptomatic testosterone deficiency should not be used in men pursuing or planning to pursue family building in the near future. In those that may want to pursue paternity in the more distant future, testosterone therapy may be offered, but the patient should be counseled about the effects on spermatogenesis and the time course required for resumption of spermatogenesis. For further information, please refer to the AUA Guideline on the Evaluation and Management of Testosterone Deficiency, specifically Statement 16: https://www.auanet.org/guidelines/testosterone-deficiency-guideline.

Men with decreased libido and/or impotence and/or testosterone deficiency accompanied by a low/low-normal LH level warrant measurement of serum prolactin to investigate for hyperprolactinemia. If prolactin is mildly elevated (≤1.5 times the upper limit of normal), a repeat fasting prolactin should be drawn to rule out a spurious elevation. While prolactin levels generally parallel tumor size, milder elevations can be found with prolactinomas as well as with other pituitary or parasellar tumors or infiltrative processes.^198,199 When evaluating prolactin levels, the clinician should be aware of assay discrepancies, which result in false values. For example, macroprolactinemia is a condition where more than 60% of circulating prolactin is made of the low biologically active macroprolactin, which results in a falsely elevated level of biologically active prolactin. The “Hook Effect” is an assay artifact caused by an extremely high level of prolactin that saturates the detecting antibody used in the PRL assay, and results in a falsely low reported value.^199-201

For persistently elevated prolactin levels above the normal value without an exogenous etiology, MRI is indicated.^199,200,202

Prolactin, a polypeptide hormone, is synthesized and secreted from the pituitary gland. Hyperprolactinemia is a well-established cause of secondary hypogonadism and can lead to infertility, decreased libido, sexual dysfunction, and gynecomastia. Causes of hyperprolactinemia include pituitary tumors, and primarily prolactin producing tumors; however, it may also be due to non-lactotroph adenomas (GH, ACTH, chromophobe) and cystic adenomas. Tumors near the hypothalamus or pituitary that interfere with the secretion of dopamine or its delivery to the hypothalamus (e.g.,craniopharyngiomas) infiltrative diseases (e.g., sarcoidosis, hemochromatosis, TB), and malignant tumors that arise within or near the sella or metastasize to these areas can also elevate prolactin levels.²⁰³

Drugs that decrease dopaminergic inhibition of prolactin secretion also cause hyperprolactinemia. These include opioid analgesics, many antipsychotics and antidepressants, antiemetics, prokinetics, and antihypertensives. Hypothyroidism, stress, elevated estrogen levels, chronic renal failure, and chest wall injuries can increase prolactin levels.

Treatment depends on the etiology of the hyperprolactinemia.²⁰¹ Dopamine agonists are the first-line treatment for patients with pituitary prolactinomas. Transsphenoidal surgery may be considered when dopamine agonist treatment is unsuccessful or if the patient prefers surgery to life-long therapy.²⁰⁴

For men with hyperprolactinemia who do not have a pituitary adenoma, management should focus on treatment of the underlying condition or factor causing the elevated prolactin (e.g., treatment of hypothyroidism, medication changes for drugs associated with elevated prolactin levels).

SERMs induce increased LH and FSH production by the pituitary gland. Although not FDA-approved for use in men, SERMs such as clomiphene or tamoxifen are often prescribed in infertile men who have normal serum testosterone levels with the therapeutic aim of improving semen parameters and fertility outcomes. One meta-analysis reviewed 11 studies that compared either clomiphene or tamoxifen with either placebo or no treatment in men with oligozoospermia or asthenoteratospermia.²⁰⁵ Collectively, the findings suggested that SERMs may improve sperm concentration, sperm motility, and spontaneous pregnancy rate.²⁰⁵ A more recent systematic review published in 2019 included 16 studies that compared clomiphene or tamoxifen to placebo, no treatment, or other treatments (e.g., supplements, other medications) in men with oligozoospermia. As anticipated based on mechanism of action of SERMs, gonadotropin and serum testosterone levels increased. Data suggested an improvement in sperm morphology and pregnancy rate with SERM administration, but no consistent impact on other semen parameters.²⁰⁶ The studies included in both of these review articles were of variable quality in terms of selective reporting, bias, and blinding. As such, any possible limited benefits of SERM administration, particularly in the patient population with idiopathic infertility, are small and, therefore, outweighed by the distinct advantages offered by other forms of medically-assisted reproduction (e.g., IVF), which include higher pregnancy rates and efficiencies with respect to the earlier timeframe of conception.

There are no clear, reliable data related to the variety of supplements (vitamins, antioxidants, nutritional supplement formulations) that have been offered to men attempting conception. Current data suggest that they are likely not harmful, but it is questionable whether they will provide tangible improvements in fertility outcomes. A recent RCT by the NIH Reproductive Medicine Network of 174 men did not show adequate effect on semen parameters or DNA integrity in the initial screening arm to proceed to full patient accrual.²⁰⁷

“Beneficial effect” means that the between-group difference was statistically significant. “No effect” means that it was not statistically significant and the 95% confidence interval ruled out the possibility of an important effect (as defined by 20% of typical values). “Inconclusive” means that it was not statistically significant and the 95% confidence interval was too wide to rule out the possibility of an important effect.

Exogenous FSH may be used as an adjunct for treatment of HH in order to initiate and maintain spermatogenesis with good results. To this end, some clinicians have employed exogenous FSH in infertile men without HH (i.e., baseline FSH in or slightly above the normal range) with the therapeutic goal of improving fertility outcomes despite limited published data to date. Typical treatment doses were 150 IU given daily over a 12-week period of therapy. One comprehensive meta-analysis reviewed 15 trials and described impacts of FSH administration versus placebo or no treatment on semen parameters and pregnancy rates. Overall, sperm concentrations and pregnancy rates, both unassisted and via ART, appeared to improve in the FSH-treated men.²⁰⁸ A subgroup meta-analysis from this study looked at the 9 trials of FSH administration in 389 men compared to 308 controls and related unassisted pregnancy rates, with a resultant overall OR of 4.50 (CI 2.17 to 9.33, P<0.001). A second subgroup meta-analysis assessed pregnancy rates after ART; 322 men were treated with FSH compared to 275 controls, with a resultant overall OR of 1.60 (CI 1.08 to 2.37, P=0.002).

Another systematic review included 6 RCTs (225 men on FSH, 231 controls) assessing FSH versus placebo or no treatment and impact on pregnancy rate and live birth rate. FSH therapy prior to medically-assisted treatments (one study on IUI, one study on IVF-ICSI) did not conclusively affect pregnancy rates with ART.²⁰⁹

One RCT published in 2015 compared 4 different doses of FSH with placebo in 354 men with idiopathic oligozoospermia. Couples who did not achieve pregnancy within three months of initiation of therapy underwent ART. Findings were inconclusive with respect to spontaneous and ART pregnancy rates.²¹⁰

Clinicians should be aware that FSH is not FDA-approved for use in men. Additionally, the cost-to-benefit ratio of this treatment is questionable. Of note, few studies have provided data that compare the effect of FSH to SERM therapy for infertile men.

For any patient with NOA, it would be ideal to optimize spermatogenesis and hence the chances of sperm recovery at the time of attempted surgical sperm retrieval. SERMs, AIs, and hCG have been used off-label to try to manipulate male reproductive hormones with the goal of inducing recovery of sperm to the ejaculate or improving surgical sperm retrieval rates (SRR). Unfortunately, limited data are available with respect to treatment outcomes. In addition, many of the published studies included medical therapy without control groups, ignoring the common detection of cryptozoospermia in men presumed to have azoospermia.

As described in Guideline 39 clomiphene citrate is the most studied of the SERMs. One single-center, prospective, non-randomized comparative study assessed men with NOA who received CC prior to micro-TESE. Of the 372 men receiving CC, 11% had sperm recovery in the ejaculate, obviating the need for micro-TESE. SRR at the time of micro-TESE in the remaining 331 men was 57.7%, as compared with 33.6% in the control group.²¹¹

A double-blind, multi-center RCT published in 2013 compared treatment with letrozole, an aromatase inhibitor, to placebo in men with NOA. Although all NOA men in the treatment arm did have recovery of sperm in the ejaculate (and none in the placebo group), there were no unassisted pregnancies in either the treatment or placebo groups.²¹²

Two studies used gonadotropin treatment in men with NOA.^213,214 One retrospective comparison study explored the effects of hCG to no treatment in men with NOA undergoing surgical sperm retrieval; 34 men were in the treatment arm, and 49 did not receive hCG. For all patients, conventional TESE was the initial surgical approach. If no sperm were identified, the procedure was converted to micro-TESE. There was no statistically significant difference in SRR, pregnancy rate, or live birth rate between groups.²¹³ A second prospective, non-randomized comparative study of 108 men with NOA compared FSH treatment to no medication prior to TESE. Neither group had recovery of sperm to the ejaculate. Surgical SRR in this small study was 64% in the men who received FSH versus 33% in the no-treatment group.²¹⁴

As these few low- to moderate-quality studies with small sample sizes demonstrate, little evidence is yet available with respect to optimization of spermatogenesis and SRR in men with NOA.

Radiotherapy and chemotherapy used for cancer and other medical conditions can often lead to temporary or even long-term gonadal injury in men. These therapies can have dramatic effects on a man’s ability to father children, and this is particularly important with adolescents and young men hoping to preserve their fertility. Patients should be informed of the short and long-term implications of these therapies. They should be made aware that estimates are available on the risk of azoospermia associated with gonadotoxic therapy and that the treatment regimen may change during the course of therapy.²¹⁵

The recovery of sperm production following radiotherapy and/or chemotherapy depends on the survival of spermatogonial stem cells in the testis. Radiotherapy and/or chemotherapy treatments that affect differentiating spermatogenic cells (e.g., spermatocytes, spermatids) but that do not kill stem cells in the testis will cause a temporary decline in sperm production followed by a gradual recovery of spermatogenesis after cessation of therapy.²¹⁶ However, some radiation and/or chemotherapy regimens can damage spermatogonial stem cells, resulting in delayed or incomplete recovery of spermatogenesis or even permanent azoospermia.^216,217

The recovery of sperm in the ejaculate may take months to years when the radiation dose exceeds 1 Gy;^218-221 a dose exceeding 10 Gy will often result in permanent azoospermia.^222,223 A radiation dose exceeding 7.5 Gy has been associated with a significantly reduced probability of fertility in a large cohort study.²²⁴ In animal models, the combination of high-dose radiation and chemotherapy may have a synergistic toxic effect on spermatogenesis.^222,223 Fractionated radiation (given over the course of weeks) may have a more detrimental effect on spermatogenesis than a single radiation dose.²²¹ It has been reported that for men with testicular cancer who undergo orchiectomy and radiotherapy, the rates of long-term azoospermia (beyond 2 years after radiotherapy) range from 5% to 18%.^225-228

Certain chemotherapeutic drugs are toxic to stem cells and can cause prolonged azoospermia. Alkylating agents (e.g., procarbazine, cyclophosphamide, ifosfamide) and cisplatin target spermatogonial stem cells, and these drugs are the most likely to lead to permanent azoospermia at high doses.^229,230 Most other chemotherapeutic agents (e.g., anthracyclines, microtubule inhibitors, antimetabolites, topoisomerase inhibitors) target differentiating germ cells in the testis (e.g., spermatids, spermatocytes, differentiating spermatogonia) and cause a transient reduction in sperm parameters with gradual recovery of sperm count observed three to six months after cessation of therapy.²³¹ For example, topoisomerase II inhibitors (e.g., etoposide) are most toxic to spermatocytes with little to no toxicity to stem cells.²³² Doxorobucin targets differentiating spermatogonia and spermatocytes. Most targeted monoclonal antibody therapies appear to have only minimal effects on sperm counts and male fertility potential, but the data on these agents are limited.²³³

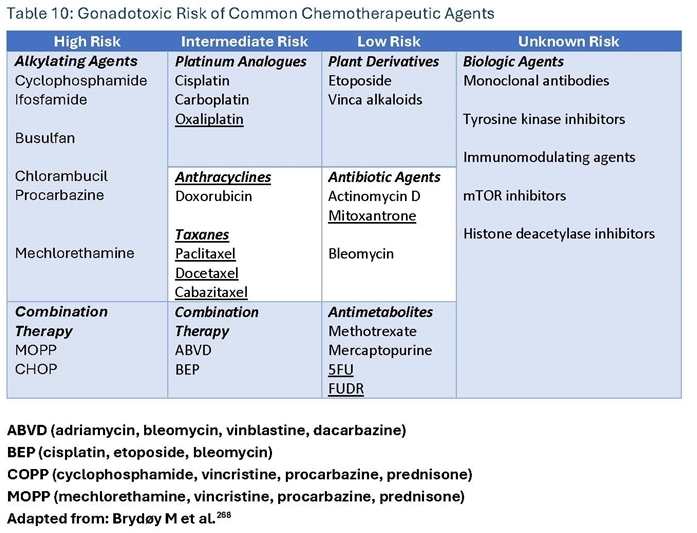

Table 8: Gonadotoxic risk of common chemotherapeutic agents.

MOPP (mechlorethamine, vincristine, procarbazine, prednisone)
COPP (cyclophosphamide,vincristine, procarbazine, prednisone)
ABVD (adriamycin, bleomycin, vinblastine, dacarbazine)
BEP (cisplatin, etoposide, bleomycin)
Adapted from: Brydøy M et al.²³⁴

Men with testicular cancer who undergo orchiectomy and chemotherapy have rates of long-term azoospermia ranging from 1% to 42%.^{225-228, 235-238} For azoospermic men with an intratesticular lesion, cryopreservation of testicular tissue should be considered during orchiectomy or excisional biopsy of the testicular lesion (an Onco-TESE approach).²³⁹ Two of the studies on testicular cancer patients compared two different chemotherapy regimens, and both found that more intensive regimens were associated with higher azoospermia rates.²²⁶ Brydoy et al. found that a cisplatin dose >850 mg resulted in a much higher azoospermia rate than cisplatin ≤850 mg (42% versus 20%). Similarly, Isaksson et al.²²⁷ found that 3 to 4 cycles of cisplatin-based chemotherapy was associated with higher azoospermia rates than 1 to 2 cycles (10% versus 1%).

For men with Hodgkin’s lymphoma who undergo chemotherapy, the rates of long-term azoospermia range from 0 to 82%.^225,240-244 Some chemotherapy regimens used for Hodgkin’s lymphoma (MOPP and cyclophosphamide-based regimens such as BEACOPP) have been associated with high rates of azoospermia.²⁴⁴ In contrast, none of the men who received the newer ABVD regimen have had long-term azoospermia.^244,245 Men with leukemia who undergo chemotherapy experience rates of long-term azoospermia ranging from 19% to 55%.^{225,236,243,246} For prepubertal boys receiving chemotherapy and/or radiotherapy for cancer, the rates of long-term azoospermia range from 12% to 41%.^243,247-252

One of the major concerns regarding the effects of gonadotoxic therapies in men wishing to father children is the induction of mutations in developing testicular germ cells.²⁵³ Studies have clearly demonstrated that radiation and chemotherapy can alter the genomic integrity of testicular germ cells. The genomic damage induced by these treatments is germ cell stage specific. This implies that during and for a defined period of time after exposure to radiation and/or chemotherapy (depending on the susceptible germ cell) a man can produce an increased proportion of genetically abnormal spermatozoa. Conceiving a child during this period can substantially increase the risk of genetic mutations in the offspring.

Most alkylating agents (melphalan, procarbazine, chlorambucil, busulfan, nitrogen mustard, cyclophosphamide, ifosfamide, and trophosphamide) induce mutations in exposed post-meiotic cells (spermatids and spermatozoa) with lesser mutagenic effects on stem cells, although these drugs can cause permanent azoospermia.²⁵⁴ Topoisomerase II inhibitors (e.g., etoposide) can induce mutations in spermatocytes with little to no genomic injury to stem cells.²³² Radiation produces high levels of mutations in all stages of differentiating germ cells with lower levels in stem spermatogonia.²³² In contrast, bleomycin (antitumor antibiotic) and mitomycin C induce mutations in stem cells and differentiating spermatogonia but not in meiotic or post-meiotic cells.²⁵⁵

Based on the known mutagenic effects of gonadotoxic therapies it is important to use contraceptive measures for a period of at least 12 months after completion of therapy. Studies on the health and genetic integrity of children fathered by men exposed to chemotherapy and/or radiotherapy have generally been reassuring. This is based on numerous studies of children conceived one or more years after gonadotoxic therapy. Yoshimoto et al.²⁵⁶ observed no increase in malignancy in the children of parents exposed to atomic bomb radiation. Winther et al.²⁵⁷ observed that the occurrence of abnormal karyotypes in children of treated cancer survivors was the same as that among the comparison sibling families. Signorello et al. and Al-Jebari et al. have reported that the children of cancer survivors are not at significantly increased risk for congenital anomalies due to their parent's exposure to mutagenic cancer treatments.^258,259

Most human sperm fluorescent in situ hybridization studies report an increased rate of sperm chromosomal aneuploidy and diploidy in the first two years following chemotherapy.^260-264 Beyond the first two years post-therapy, the rate of sperm aneuploidy becomes comparable to that of controls.^264,265 These studies suggest that the effect of gonadotoxic therapy on the genomic integrity of stem cells disappears over time. Furthermore, these data are in keeping with studies demonstrating a sharp decline in conventional sperm parameters at 6 months and recovery of spermatogenesis at 12 to 24 months after cancer treatment.^{228,245,266-269}

Gonadal dysfunction is a significant long-term consequence of cancer therapy.^215,270 This is particularly important for adolescents and young adult cancer patients who are at risk of developing infertility following cancer therapy. As previously discussed, gonadotoxic therapies can cause a marked decline in sperm production as a result of acute injury to testicular germ cells. Moreover, the genomic integrity of germ cells and spermatozoa will be compromised during and shortly after gonadotoxic therapies. The recovery of spermatogenesis following radiotherapy and/or chemotherapy depends on the survival of spermatogonial stem cells in the testis. In some cases, extensive damage to spermatogonial stem cells can result in delayed and incomplete recovery of spermatogenesis or even permanent azoospermia.^216,217 As such, it is important to encourage young men to bank sperm prior to initiating gonadotoxic therapies. In keeping with this guideline, several societies (ASCO, ASRM) recommend that fertility preservation be an essential component in the management of cancer patients.^271,272

A patient should be given a few days, if possible, to bank sperm prior to gonadotoxic therapies. This will allow the patient sufficient time to submit one or more semen samples, or potentially undergo a sperm extraction (electroejaculation or TESE) in the event of an unsuccessful attempt at sperm banking (inability to ejaculate or a semen sample with no viable sperm).^273,274

Depending on sperm count and motility, a banked sperm sample can be used for either IUI or ART. For IUI, insemination with a minimum of 3 to 5 million motile sperm in the ejaculate is needed.^275,276 Below this motile sperm count, the success rate of the technique decreases. Since approximately 50% of sperm do not survive semen processing, a total motile count of at least 5 to 10 million sperm is usually required to allow for an adequate number of motile sperm for insemination. For ART, only a small number of motile sperm are required for the procedure.²⁷⁷ Since ARTs are only moderately effective, a couple may need to undergo several cycles of IVF treatment in order to achieve a pregnancy. As such, men should be encouraged to bank multiple semen specimens and the sperm bank should divide the specimen into adequate aliquots in order to prepare for multiple attempts at assisted reproduction. Another reason for encouraging banking of multiple specimens is that men presenting with cancer will generally have poorer semen parameters than normal donors, and their sperm respond less favorably to freeze-thawing (with poorer post-thaw motility) than donor sperm.^278-280

Studies have shown that 20 to 50% of men will bank sperm prior to chemotherapy.^281-283 The low sperm banking rates have been attributed to inadequate fertility counseling before gonadotoxic therapy and lack of desire to father children.²⁸² Interestingly, a very small percentage of men will use their banked sperm in assisted reproduction. In most studies, less than 10% of men who have banked sperm will later use their sperm in assisted reproduction.^225,283-286

Generally, a sharp decrease in semen quality (especially sperm concentration) occurs immediately after treatment followed by a gradual return to better quality. The nature of this return depends on numerous factors including the cancer type, type of treatment administered, treatment dosing, and the duration after completion of treatment at which the SA is performed.

The systematic review used to inform this guideline found 15 studies assessing spermatogenesis after gonadotoxic therapies.^{199,227,228,235,245,264,266-269,287-292} The most common cancer types studied are testis cancer and Hodgkin’s lymphoma, and the most common treatments reported on were BEP and ABVD. The most commonly reported semen parameters were sperm concentration (nine studies), sperm count (seven studies), and sperm motility (six studies). The durations of follow-up were two years (eight studies), two to five years (four studies) and six or more years (three studies). Eleven of the studies were rated as moderate quality, while four were rated as low quality.

When analyzing data for the rates of azoospermia, rates were highest within the first 12 months after completion of therapy and lowest at a time point between 2 to 6 years, with the majority of studies demonstrating the nadir in azoospermia rates at a timepoint between 2 to 3 years following treatment completion. When analyzing sperm concentration after completion of treatment, significant heterogeneity existed in the data; the majority of the studies demonstrated lowest sperm concentration by 12 months and maximization of recovery in the majority of studies between 2 to 3 years after the completion of treatment. Data on sperm motility and morphology were similar to the above findings. The azoospermia and sperm concentration data were also consistent across various types of cancers and when comparing chemotherapy versus radiation for testis cancer.

The higher the dose and the greater the number of cycles (especially above 2 cycles), the greater the likelihood of failure to recover normal sperm concentrations (defined <20 million/mL). In lymphoma patients treated with ABVD, the nadir in sperm concentration occurred within the first 6 to 12 months with return to pre-treatment sperm concentration levels common within 1 to 3 years after completion of treatment.

These data strongly suggest not performing a SA within the first 12 months after treatment completion and, where possible, to assess sperm recovery at a time point 2 to 3 years after treatment ends.

Counseling on the availability of sperm banking prior to any testis cancer treatment including RPLND should be provided by the clinician.

Ejaculation is a reflex, involving a complex interplay between somatic, sympathetic, and parasympathetic pathways involving predominantly central dopaminergic and serotonergic neurons. In humans, the ejaculate is composed of fluid derived primarily from the seminal vesicle and prostate.

In antegrade ejaculation, two main processes are present: emission and expulsion.²⁹³ Expulsion, the antegrade flow of semen through the urethral meatus, is due to the combined action of sympathetic and somatic pathways. Antegrade ejaculation requires a synchronized interplay between peri-urethral muscle contractions and bladder neck closure, contemporaneous with the relaxation of the external urinary sphincter. Sympathetic nerve fiber damage, such as that which can occur during a RPLND, can result in failure of the bladder neck to contract effectively allowing semen deposited into the prostatic urethra to pass in a retrograde fashion into the bladder (i.e., RE).

Emission is a sympathetic spinal cord reflex and involves the deposition of seminal fluid into the posterior urethra. Failure of emission (FOE) is the phenomenon whereby semen fails to be deposited into the prostatic urethra. This usually results from a greater degree of retroperitoneal sympathetic nerve fiber injury than that which results in RE. Failure of antegrade ejaculation assumes that a patient is reaching orgasm with a functional abnormality, rather than psychogenic anejaculation, where orgasm is not achieved.

RPLND is a cornerstone in the management of some patients with testis cancer. It can be performed either before the delivery of chemotherapy (pre-chemo RPLND) or after chemotherapy (post-chemo RPLND). Given the distribution of the nodes involved in drainage of the testes, the lumbar sympathetic nerve fibers responsible for ejaculation (T10-L2) are in close proximity to the node dissection templates. In the hands of an experienced testis cancer surgeon, nerve sparing RPLND should only rarely result in permanent nerve damage and long-term failure to ejaculate (RE or FOE). However, in the post-chemo RPLND patient the likelihood of this is higher. It is estimated that about 40% of patients undergoing post-chemo RPLND are candidates for nerve sparing surgery, and modern series of nerve sparing post-chemo RPLND patients report preservation of some antegrade ejaculation in 74-96%.^273,294

As with any neural trauma, maximum recovery can take 12 to 24 months and thus, patients who have had nerve sparing RPLND should be told that return of antegrade ejaculation may take a protracted period of time. If aspermia remains 24 months after RPLND, then the patient should be informed that this is likely to be permanent.

Differentiating between RE and FOE requires analysis of a urinalysis after the achievement of orgasm. Patients should be instructed to urinate before masturbating to orgasm. Whatever antegrade fluid is procured should be placed in a sterile cup. The urine specimen should be analyzed for the presence of semen and sperm with centrifugation and analysis of the pellet at the bottom of the centrifuge tube.

α-sympathomimetic agonists have been shown to improve bladder neck closure. Thus, they can be used in patients with aspermia. While the data are limited, it appears that men with RE are more likely to respond to α-agonists with an antegrade ejaculation than men with FOE after retroperitoneal surgery.²⁷³ Therefore, differentiating between RE and FOE may be of benefit in planning the management of some patients with failure to ejaculate. A common oral treatment with α agonists involves 60 mg of pseudoephedrine given orally 4 times a day for two days prior to production of a sample.

Given the aforementioned incidence of long-term azoospermia after gonadotoxic therapies, some men with interest in starting a family or expanding their family size will be faced with a decision regarding how to accomplish this. While artificial insemination using donor sperm or adoption are viable options, some men will prefer to explore the possibility of using their own sperm. In these cases, a discussion should be held about the option of TESE.

TESE has become a mainstay in the management of the man with NOA, when the azoospermia is unrelated to gonadotoxic therapy. Depending upon a number of factors, SRR using TESE have been cited in the 40-60% range.^295,296 While the experience is extensive in the non-cancer population, there is significantly less experience using TESE in men exposed to gonadotoxic therapies.

The systematic review used to inform this guideline found seven studies assessing the use of TESE (four reporting conventional TESE, three micro-TESE) in men exposed to gonadotoxic therapies.^297-303 These studies included men with mixed types of cancer. The elapsed time between exposure to gonadotoxic therapy and TESE was 11 years (range 5-19). Sperm retrieval is typically deferred until at least two years after chemotherapy. While all seven studies reported SRR, only one reported pregnancy/live birth rates.

The data underwent metanalysis (i² = 0% indicating high homogeneity across the seven studies) with a combined rate of sperm retrieval of 42% (95% CI 34% to 49%), with no significant differences between conventional (overall sperm retrieval rate 45%, 95% CI 34% to 58%) and micro-TESE (overall sperm retrieval rate 40%, 95% CI 32% to 49%). However, the advantage of micro-TESE over conventional TESE in other forms of NOA suggests that this is the preferred approach for men azoospermic after chemotherapy. The patient numbers were too small to define if one cancer type (testis, germ cell tumors, Hodgkin’s lymphoma, leukemia, sarcomas and other solid tumors) had better/poorer SRR compared to others.

Only Hsiao et al.³⁰⁰ reported on pregnancy rates using ICSI with a cited overall pregnancy rate of 25% (18/73), with 21% (15/73) having a live birth using their sperm. Looked at differently, once sperm were obtained with TESE or micro-TESE, the pregnancy rate was 67% (18/27) with a live birth rate of 15/27 (56%).
